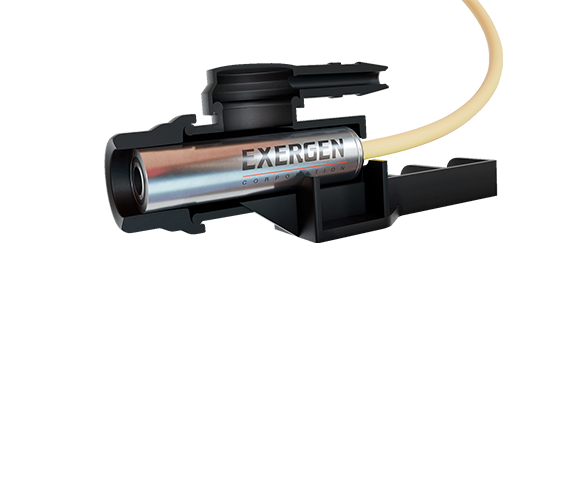

Micro IRt/c Airpurge

Product Overview

This convenient and inexpensive kit makes it possible to use the micro IRt/c with air for service in harsh environments. Measuring only 65.5 mm (2.58 )overall, the Micro IRt/c airpurge is physically small enough to fit into tight areas and closely monitor process temperatures from the optimum position- up close. This air purge kit ensures that the performance of a micro IRt/c does not degrade because of contamination by deposits of airborn chemicals or particles on the sensor. Efficient in design, the Micro IRt/c airpurge requires as little as 3.5 SCFH(1.7 L/min) of air to protect a micro IRt/c. In addition to keeping a micro IRt/c clean, the airflow through the air purge jacket can cool a micro IRt/c, allowing it to operate in environments of up to 175°C (347°F) with only17 L/min (35 SCFH) at 0.33 bar (5 psig).
